0.7, 0.8, 1.0, 1.2
22

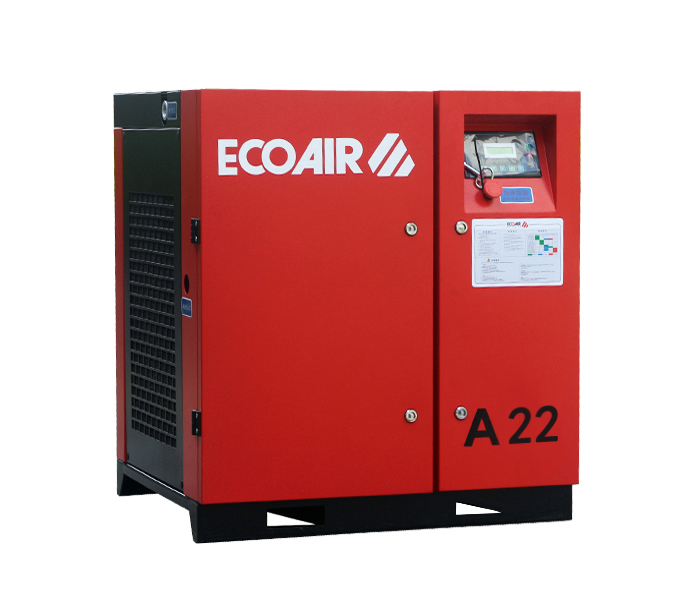

Model | Mpa | A22 |
flow(m³/min) | Displacement/m³/min pressure/Mpa | 3.6/0.7 |
3.56/0.8 | ||
3.07/1.0 | ||
2.84/1.2 | ||
Compressor series | / | Monopole |
ambient temperature | ℃ | -5~+45℃ |
cooking type | / | Air Cooling |
discharge temperature | ℃ | +15℃/Environment Temp+150℃ |
noise | dB(A) | 68±2 |
drive type | / | Belt Drive |
Power supply | V/ph/Hz | 380/3/50 |
power | KW | 22 |
start type | / | Y-▲Start |
dimension | Length | 1200 |
width | 870 | |
height | 1225 | |
weight | kg | 475 |
outlet pipe | Inch | G1" |
Model | Mpa | A22 |
flow(m³/min) | Displacement/m³/min pressure/Mpa | 3.6/0.7 |
3.56/0.8 | ||
3.07/1.0 | ||
2.84/1.2 | ||
Compressor series | / | Monopole |
ambient temperature | ℃ | -5~+45℃ |
cooking type | / | Air Cooling |
discharge temperature | ℃ | +15℃/Environment Temp+150℃ |
noise | dB(A) | 68±2 |
drive type | / | Belt Drive |
Power supply | V/ph/Hz | 380/3/50 |
power | KW | 22 |
start type | / | Y-▲Start |
dimension | Length | 1200 |
width | 870 | |
height | 1225 | |
weight | kg | 475 |
outlet pipe | Inch | G1" |
