0.7, 0.8, 1.0, 1.2
160

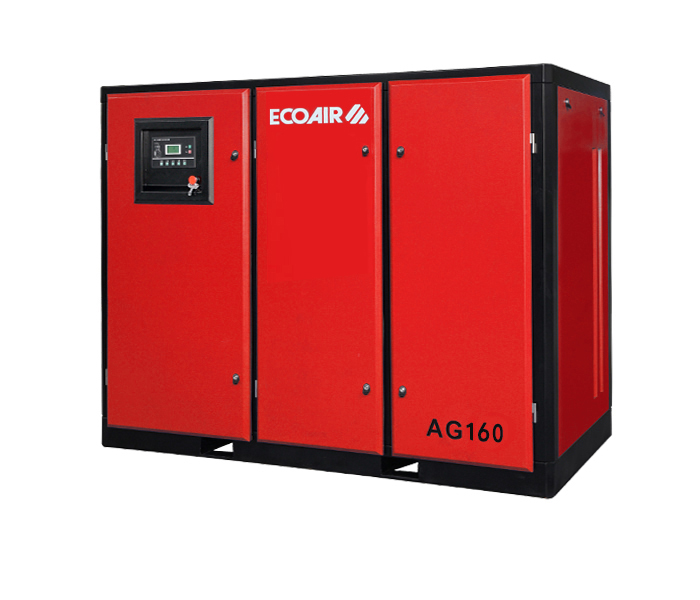

Model | Mpa | AG160 |
flow(m³/min) | Displacement/m³/min pressure/Mpa | 28.7/0.7 |
27.6/0.8 | ||
25.3/1.0 | ||
22.4/1.2 | ||
Compressor series | / | Monopole |
ambient temperature | ℃ | -5~+45℃ |
cooking type | / | Air Cooling |
discharge temperature | ℃ | ＜+15℃/Environment Temp+150℃ |
noise | dB(A) | 80±2 |
drive type | / | Direct-coupled |
Power supply | V/ph/Hz | 380/3/50 |
power | KW | 160 |
start type | / | Y-▲Start |
dimension | Length | 2630 |
width | 1500 | |
height | 1860 | |
weight | kg | 3880 |
outlet pipe | Inch | DN80 |
Model | Mpa | AG160 |
flow(m³/min) | Displacement/m³/min pressure/Mpa | 28.7/0.7 |
27.6/0.8 | ||
25.3/1.0 | ||
22.4/1.2 | ||
Compressor series | / | Monopole |
ambient temperature | ℃ | -5~+45℃ |
cooking type | / | Air Cooling |
discharge temperature | ℃ | ＜+15℃/Environment Temp+150℃ |
noise | dB(A) | 80±2 |
drive type | / | Direct-coupled |
Power supply | V/ph/Hz | 380/3/50 |
power | KW | 160 |
start type | / | Y-▲Start |
dimension | Length | 2630 |
width | 1500 | |
height | 1860 | |
weight | kg | 3880 |
outlet pipe | Inch | DN80 |
