0.7, 0.8, 1.0, 1.2
90

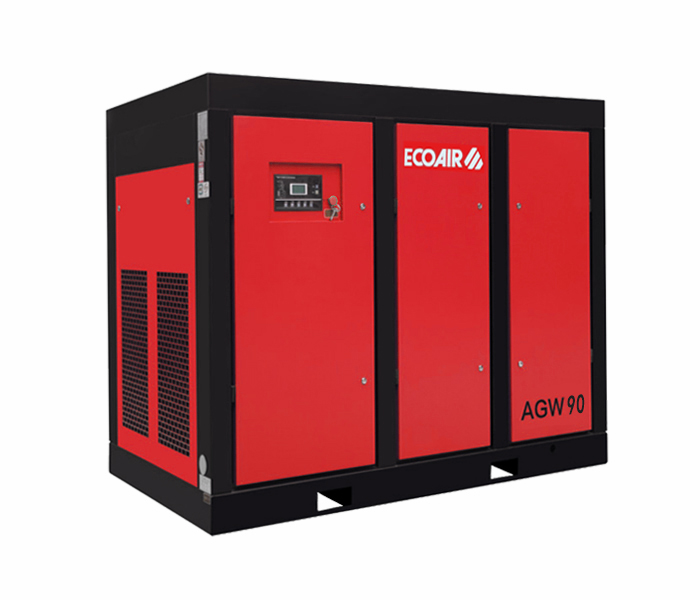

Model | Mpa | AGW90 |
flow(m³/min) | Displacement/m³/min pressure/Mpa | 17/0.7 |
15.6/0.8 | ||
14.3/1.0 | ||
12.9/1.2 | ||
Compressor series | / | Monopole |
ambient temperature | ℃ | -5~+45℃ |
cooking type | / | Water Cooling |
discharge temperature | ℃ | ＜40℃ |
noise | dB(A) | 72±2 |
drive type | / | Direct-coupled |
Power supply | V/ph/Hz | 380/3/50 |
power | KW | 110 |
start type | / | Y-▲Start |
dimension | Length | 2322 |
width | 1516 | |
height | 1820 | |
weight | kg | 2150 |
outlet pipe | Inch | DN65 |
