0.7, 0.8, 1.0
90

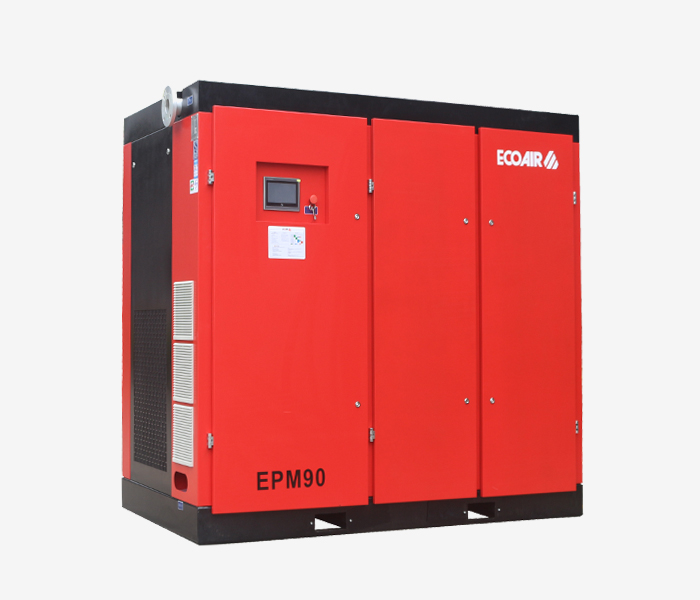

Model | Mpa | EPM |
flow(m³/min) | Displacement/m³/min pressure/Mpa | 16.8/0.7 |
15.9/0.8 | ||
13.9/1.0 | ||
ambient temperature | ℃ | -5~+40℃ |
cooking type | / | Air Cooling |
discharge temperature | ℃ | ≦Environment Temp+10℃(Air-Cooling) |
noise | dB(A) | 72±2 |
drive type | / | PM Frequency synchronization |
Power supply | V/ph/Hz | 380/3/50 |
power | KW | 90 |
start type | / | VFD Starter |
dimension | Length | 2350 |
width | 1330 | |
height | 2000 | |
weight | kg | 1750 |
outlet pipe | Inch | DN65 |
Model | Mpa | EPM |
flow(m³/min) | Displacement/m³/min pressure/Mpa | 16.8/0.7 |
15.9/0.8 | ||
13.9/1.0 | ||
ambient temperature | ℃ | -5~+40℃ |
cooking type | / | Air Cooling |
discharge temperature | ℃ | ≦Environment Temp+10℃(Air-Cooling) |
noise | dB(A) | 72±2 |
drive type | / | PM Frequency synchronization |
Power supply | V/ph/Hz | 380/3/50 |
power | KW | 90 |
start type | / | VFD Starter |
dimension | Length | 2350 |
width | 1330 | |
height | 2000 | |
weight | kg | 1750 |
outlet pipe | Inch | DN65 |
